Matt Sorry I'm not familiar with Portsmouth is this Portsmouth, Ohio? If so where did you find the photos please? My wife's Grandfather worked there and I'm curious as to what was there. Unfortunately he is no longer alive for me to ask. Thanks for sharing.John Musgrove

Sent from AOL on Android

  On Tue, Jun 24, 2025 at 7:11 AM, NW Mailing List via NW-Mailing-List<nw-mailing-list at nwhs.org> wrote:   A month ago I discovered the treated water tanks at the Dorney coaling station I’m modeling are open on top, Petticoat Junction style. Dorney, like Portsmouth in the attached photo, has three water tanks; one for the raw water, and two for treated water. See the first photo.

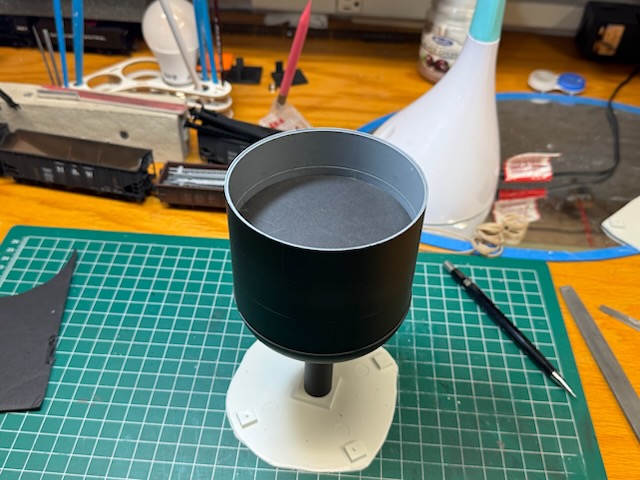

My question is partly from wanting how to model this, but partly curious from an industrial practice point of view. When there were two finished / treated water tanks, was water drawn from one, then the other (some treatment plants worked in this “intermittent” / batch way), or were the pair treated as a single tank, drawing water from both?  The photo shows equal heights, which suggests the latter, but I’m curious if anyone has direct knowledge of this.
Had these been closed tanks, the question would never have arisen!
Matt GoodmanColumbus, Ohio, US
